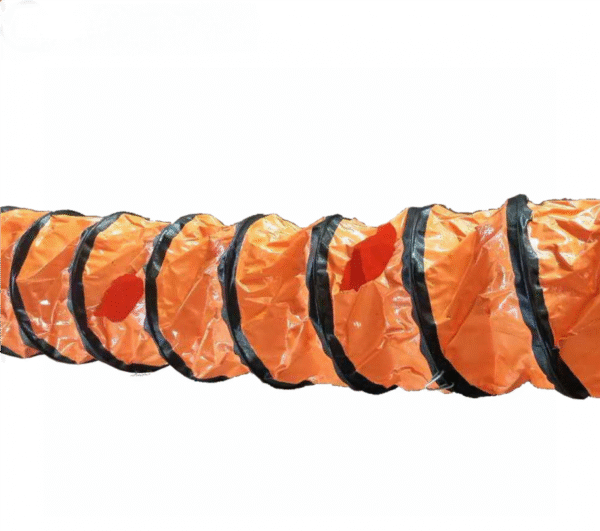

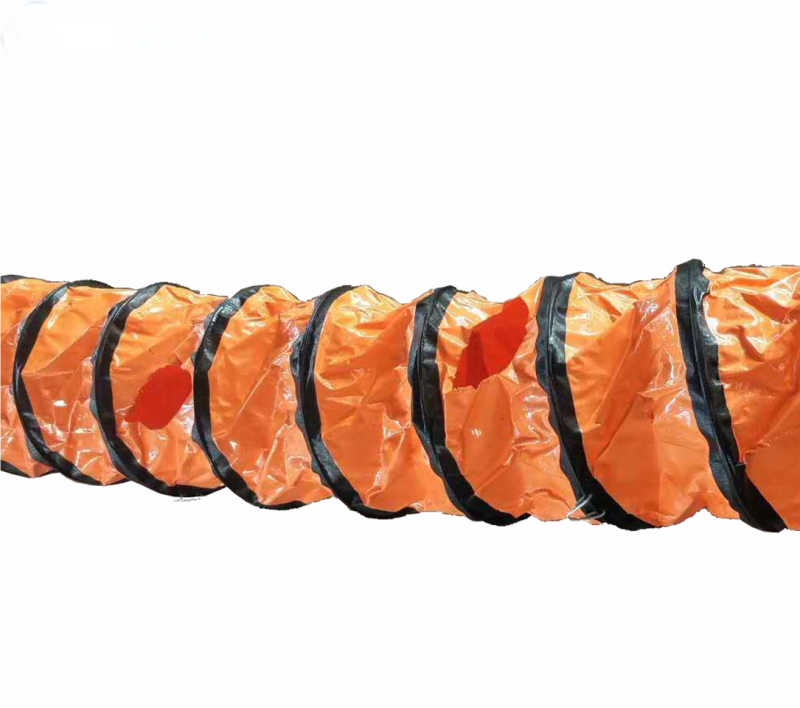

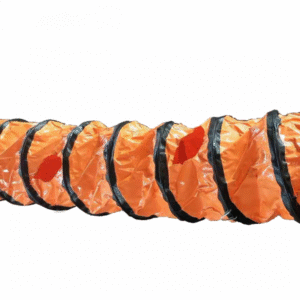

Engineering Positive Pressure Ventilation Duct φ1000-10

🌀Engineering Positive Pressure Ventilation Duct φ1000-10 Product Overview

The Positive Pressure Ventilation Duct φ1000-10 (PVC coated fabric) is an industrial-grade flexible air duct designed for high-volume, high-pressure air delivery in demanding environments. It is widely used in tunnel excavation, deep mine ventilation, municipal underground projects, and other large-scale air supply systems.

Made of double-sided PVC coated polyester fabric with a high-density mesh-reinforced base cloth, the duct offers high tensile strength, flame resistance, anti-static properties, flexibility, and oil resistance.
The φ1000mm ultra-large diameter matches high-power ventilation fans, while the 10-meter standard length allows for faster installation and long-distance air delivery connections.

---

✅Engineering Positive Pressure Ventilation Duct φ1000-10 Key Features

• Ultra-large 1000mm diameter – suitable for large tunnels and underground ventilation systems

• 10m standard section length – fewer joints, higher airflow efficiency

• PVC coated fabric – uniform thickness, strong tensile strength, tear resistance, no delamination

• Flame-retardant & anti-static – meets coal mine and underground explosion-proof ventilation requirements

• Reliable connections – compatible with zipper, flange, steel ring, and strap fastening systems

• Manufactured to Chinese standards only – no conflicting foreign certifications

---

🔧Engineering Positive Pressure Ventilation Duct φ1000-10 Technical Specifications (Standard Version)

---

📜Engineering Positive Pressure Ventilation Duct φ1000-10 Compliance Standards

This product is manufactured according to the following Chinese national and industry standards:

• GB/T 20043-2015 – Flexible coated fabric ventilation ducts for mines

• MT/T 391-2012 – Technical requirements for coal mine ventilation ducts

• GB 3836.1-2021 – General requirements for equipment in explosive atmospheres

• GB 8624-2012 – Classification of burning behavior of building materials

---

📝Engineering Positive Pressure Ventilation Duct φ1000-10 Available Technical Documents (Upon Request)

• Material test reports (flame resistance / anti-static)

• Product certificate, factory inspection record, actual size measurement

• MA Safety Mark (for coal mine applications)

• Chinese-English technical parameter sheet

---

🏗️Engineering Positive Pressure Ventilation Duct φ1000-10 Typical Applications

• Large cross-section subway and highway tunnel positive pressure ventilation systems

• Coal mine and non-coal mine underground main ventilation ducts

• Underground utility corridors (heat, cable, communication) fresh air systems

• Emergency ventilation and exhaust systems for rescue operations

• Temporary dust control and fresh air delivery in construction zones

---

🧩Engineering Positive Pressure Ventilation Duct φ1000-10 Customization Options
